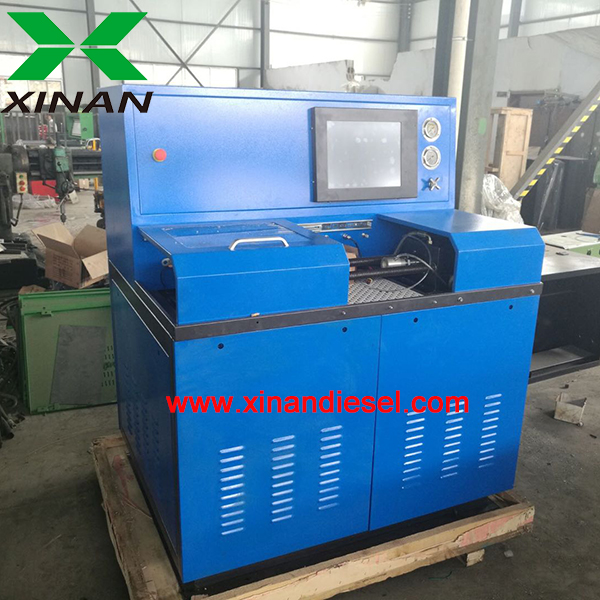

PT411 PT CUMMINS INJECTOR TEST BENCH

I. Characteristics and Usage

Flow Stand of PT411 fuel injector is special equipment used to provide adjustment of flux test for CUMMINS PT fuel injector. It can simulate the running condition of engine. It has high measure precision, quick sampling speed, extraordinary property, and convenient operation.

Fit for: 5/16" and 3/8"PTB、PTC、PTD and 3/8" overhead PTD fuel injectors flow test adjustment or spurt inclination test.

II. Test Functions

PT fuel injector

1. Flow test adjustment

2. Spurt inclination test

III. Main technique parameter

1. Number of test fuel injector 1

2. Oil tank capacity 40               L

3. Oil type                          0﹟ lightweight diesel oil

4. Temperature of oil                35±2 ℃

5. Clamping force of nozzle 709               N

6. Seal of nozzle 889               N

7. Jet power of nozzle               1690 N

8. Dimension of stand         1020×850×1470  (L×W×H) mm

9. Weight of Stand                  850               Kg
