Stand Characteristics and Usage

PT301 Fuel Injector Seal Stand is special equipment used to provide seal test for
CUUMMINS PT fuel injector. It has quick sampling speed, extraordinary property, and
convenient operation.
Fit for:5/16”and 3/8”PTB、PTC、 PTD and 3/8” overhead PTD fuel injectors seal test.

Note:
1 Delivery time 10-15 days upon the down payment
2 The way of payment 30% T/T paid in advance, balance before transportation
3 Warranty One years after the client received the goods

Main technique parameter

1. Number of fuel injector 1
2. Air test flow 0~150 ml/min
3. Fuel injector clamping force 1960 N
4. Dimension of stand 740×360×620 (L×W×H)mm

Main structure

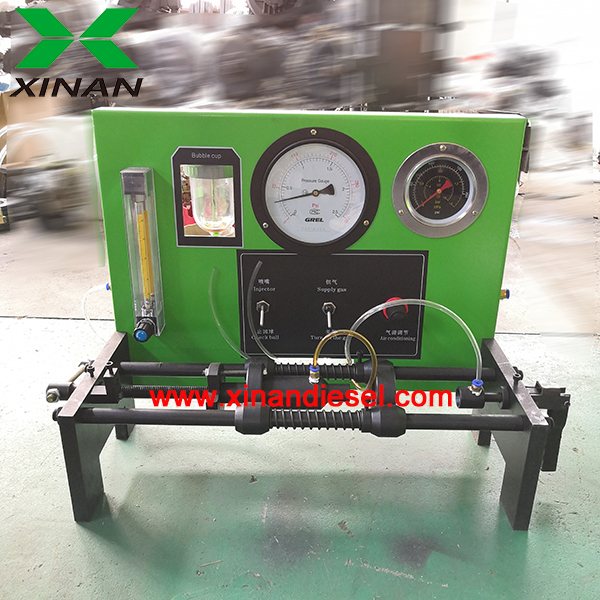

PT301 Fuel Injector Seal Stand has fuel injector load cylinder, action clamping grip,
pressure meter, manual commutating valve, air pressure regulator valve, and air filter.
1. flow meter 2. bubble cup 3. seal valve 4. system meter 5. air valve 6. air
pressure valve 7. air meter 8. bracket 9. filter 10. clamping handle 11. seal seat 12.
locking plate 13. clamping cylinder 14. piston 15. rack 16. bolt Test system
Compressed air under 0.6Mpa(80PSI) goes through air opening,
filter, and air pressure valve to two way valve. From air valve to leak
valve, it can do PT fuel injector cylinder block and cylinder seal test.
The other way is to seal valve, which can do PT fuel injector ball
check valve seal test.
