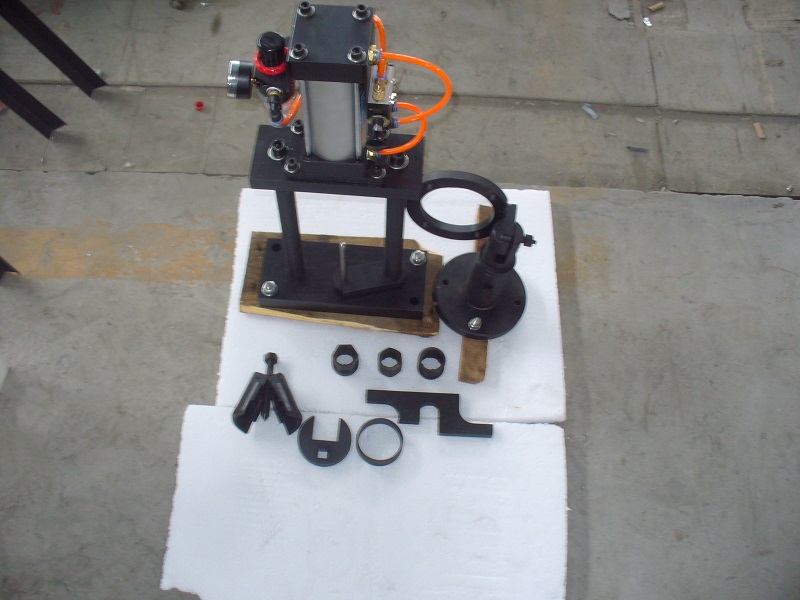

PT 800 Type PT fuel pump and

fuel injector installation

and adjustment tools

I. Tools Characteristics and Usage

They are special tools provide installation and maintain for CUMMINS PT fuel pump and fuel injector. These tools are complete, convenient, durable, and exact.

Fit for: PT（G）、PT（G）VS、PT（G）MVS、PT（G）SVS、PT（G）AFC、PT（G）AFC-VS、PT（H）VS、PT（R）fuel pumps etc.

Fit for: 5/16" and 3/8"PTB、PTC、PTD and 3/8" overhead PTD fuel injectors etc

II. Tools functions

i. PT pump installation and adjusting tools

1. PT pump assemblies installation bracket

2. PT pump coupling installation tools

3. PT pump drive shaft oil seal transition bush

4. PT pump assistant piston protrusion testing tools

5. PT pump idle speed adjusting tools

6. PT pump AFC adjusting tools

7. PT pump no air screw adjusting tools

ii. PT fuel injector installation and adjusting tools

1. PT fuel injector assemblies’ installation bracket

2. PT fuel injector installation bonnet sleeve

3. PT fuel injector installation bonnet wrench

4. PT fuel injector overhead adjusting bracket

5. PT fuel injector overhead adjusting hexagon sleeve

6. PT fuel injector overhead adjusting double offset ring spanner

7. PT fuel injector O-ring installation transition bush

8. PT fuel injector metering jet plug trim tools
