Common Rail. HEUI, EUI EUP test bench

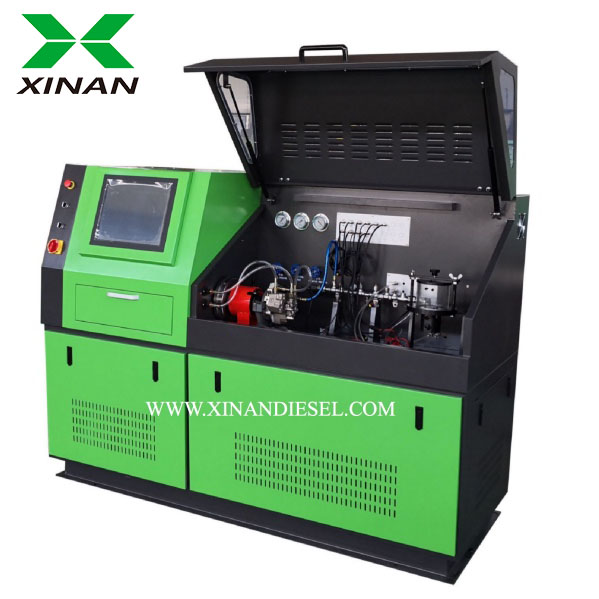

CR718 common rail test bench with HEUI and EUI/EUP CAMBOX
CR718 common rail test bench with HEUI and EUI/EUP CAMBOX
This CR718 mainly test for common rail pumps and injectors.
Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re productivity of the measured value.
COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
>>>System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP2,HP3 series injector pump and the type of Electromagnetic injectors and piezo injectors.
It also can test 6 common rail injectors in one time.
>>> Technical parameters
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW, 11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment
4, Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
5, Fuel Injector Hold Time Control: 0-65535us
6 Delivery Oil Count Control: 0-1000 times Control accuracy: 1 times
7, Fuel pressure control Control: 0-2000bar Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V
>>>Basic Function:
1. Test PIEZO injector function and Electromagnetic injectors
2. Test common rail pumps ( BOSCH CP1, CP2 CP3 DENSO HP2 HP3 , SIEMENS pumps etc..)
3. DENSO HP0 PUMP Testing.
4. DRV testing.
5.Checking the oil pump flow.
6. HEUI testing
7. EUI EUP testing
8. QR Coding( Optional)
