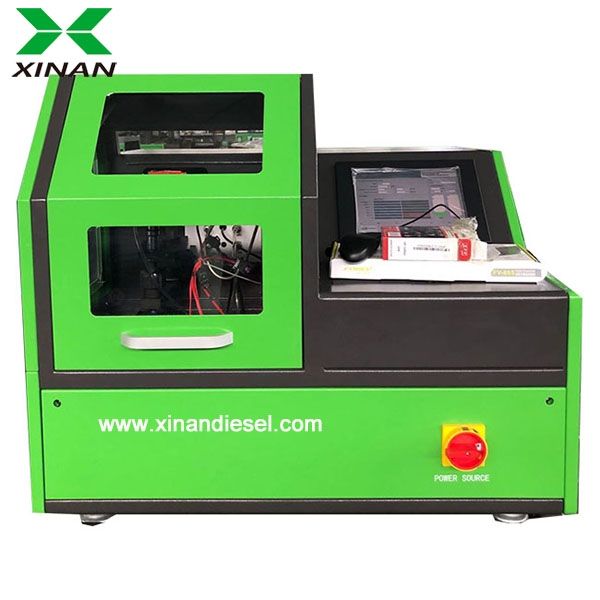

XNS205 EPS205 test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and

>>>CHARACTERISTIC

1. Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on 10.4^〃 tactile  LCD screen;

3. More than 700 kinds of injecotors data can be searched and used.

4. It is installed BOSCH common rail pump to provide 0~2000 bar

5. Rail pressure can be tested in real time,

6. Provide pressure overload protect

7. Pulse and frequency of the injector can be adjusted.

8. Injection time can be set.

9.  Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

11.Frequency converter inside to keep the RPM.

>>>FUNCTION

1.Test injector brands：BOSCH, SIEMENS, DELPHI, DENSO.

Piezo injector testing(option function)

2. Test 1 piece of injector.

3. Test the Leakage performance of common rail injector.

4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)

5. Electronic fuel delivery measuring,  automatic testing and detection.

6. Data can be searched and saved.

>>>TECHNICAL PARAMETER

1. output power:1.5KW

2. power voltage:220V 1phase

3. motor speed: 0-3000RPM

4. Oil pressure:0-2000bar

5. flow measure range: 0-600ml/1000times

6. flow measurement accuracy: 0.1ml

7. temperature control range: 40+-2
