Diesel Fuel Injection Pump Test Bench

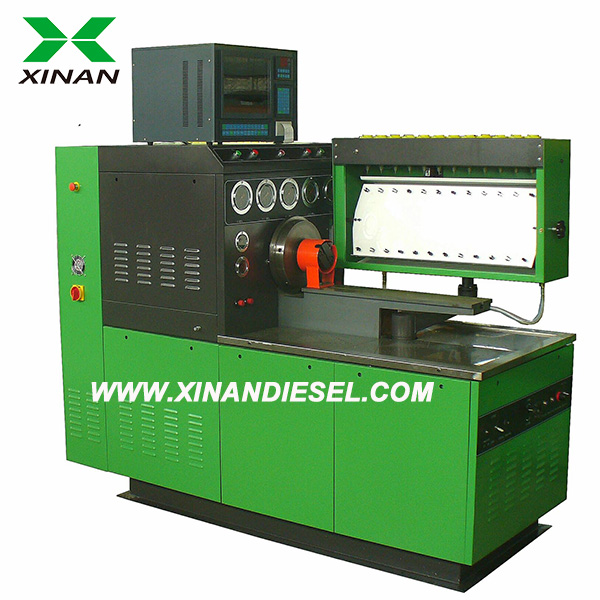

NTS619 Green color Diesel fuel injection pump test bench
Main function
1. Measurement of each cylinder delivery at any speed.2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.
10. Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.
12. Checking the travel of stroke (on request) USD150.00
13. Advance angle checking.
l Characteristics
1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Rotation speed, count, temperature, air pressure, advance angle are measured and
controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)
13. The data of the pumps can be saved, modified and obtained pump database;
14. It is very easy to find the data of the pumps in pumps database;
l Technical Parameters
|
Specifications
|
||
|
No.
|
Items
|
Data
|
|
1
|
Main motor output power(kw)
|
15KW
|
|
2
|
Frequency Converter
|
WANLI
|
|
3
|
Stroke Counting (Rpm)
|
50-9999
|
|
4
|
Standard injectors
|
PB55ST42
|
|
5
|
Power of fuel pump motor (kw)
|
0.75
|
|
6
|
Scope of rotate speed (r/m)
|
0~4000
|
|
7
|
Number of cylinders
|
12
|
|
8
|
Height of principal axis center (mm)
|
125
|
|
9
|
Filter oil precision of test bench(μ)
|
4.5~5.5
|
|
10
|
Volume of big and small volumetric cylinder（ml）
|
150 45
|
|
11
|
Volume of fuel tank(L)
|
40
|
|
12
|
DC power supply
|
12/24V
|
|
13
|
Low pressure of fuel oil pressure(Mpa)
|
0~0.6
|
|
14
|
High pressure of fuel oil pressure(Mpa)
|
0~6
|
|
15
|
Pressure Gauge for VE Pump (Mpa)
|
0-1.6
|
|
16
|
Pressure Gauge for VE Pump (Mpa)
|
0-0.16
|
|
17
|
Control temperature of fuel (℃)
|
40±2
|
|
18
|
Flywheel inertia(kg*m)
|
0.8~0.9
|
|
19
|
Scope of rack bar stroke(mm)
|
0~25
|
|
20
|
Measuring range of flow meter(L/m)
|
10~100
|
|
21
|
DC electrical source(V)
|
12 24
|
|
22
|
Positive pressure of air supply(Mpa)
|
0~0.3
|
|
23
|
Negative pressure of air supply(Mpa)
|
-0.03~0
|
|
24
|
Dimensions of Packing ( L*W*H(m ))
|
2.3*1.14*1.73
|
|
25
|
Gross weight of Test bench( kg)
|
850Kgs
|
|
NT619 PUMP TEST BENCH
PACKING LIST
|
|||||
|
Accessories and main machine parts are all packed in accessories box
|
|||||
|
NO.
|
Name
|
Specification or Symbol
|
Quantity
|
Unit
|
Remark
|
|
1
|
Fuel Injection Pump Test Bench
|
NTS619
|
1
|
Set
|
|
|
2
|
Feed Oil Pipes
|
M20×1.5×1000（mm）
|
2
|
PC
|
|
|
3
|
High Pressure Oil Pipe
|
M14×1.5/M14×1.5×600
|
12
|
PCs
|
With it injector itself
|
|
4
|
High Pressure Oil Pipe
|
M14×1.5/M12×1.5×800
|
12
|
PCs
|
|
|
5
|
45ml Graduate
|
45ml
|
12
|
PCs
|
|
|
6
|
150ml graduate
|
150ml
|
12
|
PCs
|
|
|
7
|
Standard Injector
|
PB55ST42
|
12
|
PCs
|
|
|
8
|
Oil pump connector
|
M14×1.5
|
2
|
PCs
|
|
|
9
|
Oil pump connector
|
M12×1.5
|
2
|
PCs
|
|
|
10
|
Oil pump connector
|
M16×1.5
|
2each
|
PCs
|
|
|
11
|
Scale Lever
|
|
1
|
PCs
|
|
|
12
|
Rotational Joint
|
φ12.5 φ14.5 φ16.5
|
2each
|
PCs
|
|
|
13
|
Versatile angle iron
|
|
1
|
Set
|
|
|
14
|
Coupler
|
ⅠⅡⅢ.IV，V
|
1each
|
PCs
|
|
|
15
|
Clamping Bracket
|
|
1
|
Set
|
|
|
16
|
T-type screw nail
|
|
3each
|
PC
|
One of them longer
|
|
17
|
Hexagon Wrench
|
S=10
|
1
|
PCs
|
|
|
18
|
Locating Block
|
ⅠⅡⅢP7, P7100 etc.
|
2each/14PCs
|
PCs
|
|
|
19
|
DC power supply wire
|
12/24V
|
1
|
PCs
|
|
|
20
|
Air Pipe assemble
|
|
|
|
|
