Diesel Fuel Injection Pump Test Bench

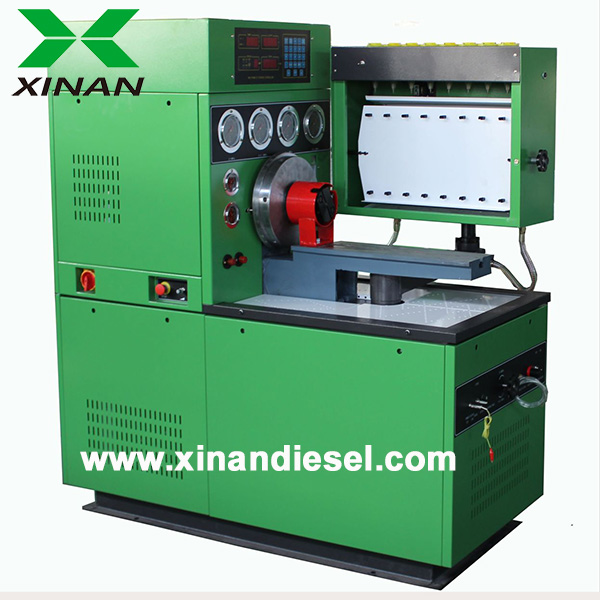

12PSB-MINI Diesel Fuel Injection Pump Test Bench
|
Introduction 12PSB series diesel fuel injection test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business. |
|
Main function 1．Measurement of each cylinder delivery at any speed。 2. Test point and interval angle of oil supply of injection pump. 3. Checking and adjust the mechanical governor. 4. Checking and adjusting the distributor pump. 5. .Experiment and adjusting of behavior of supercharging and compensatory device. 6. Measurement of oil return of distributing pump 7. Testing of the electromagnetic valve of distributor pump.(12V/24V) 8. Measurement of the internal pressure of distributor pump. 9. Checking of the advance angle of advance device.(on request) 10. Checking the sealing of injection pump body 11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.) |
| Technical characteristic |
|
Type
|
Technical characteristic
|
Output power(KW)
|
|
12PSB-I
|
1.test cylinders:12 2.RPM 0-4000. 3.Three speed preset. 4.With 12v/24v DC power 5.digital display of oil cont times |
5.5 7.5 11 15 18.5 |
|
12PSB220V-I
|
SAME 12PSB-I |
4
|
|
12PSB-II
|
1.test cylinders:12 2.RPM 0-4000 3.Three speed preset 4.With 12v/24v DC power 5.digital display of oil count times 6.digital display of temperature 7.Measurement of oil return of distributing pumps 8.the internal pressure of VE pump. |
5.5 7.5 11 15 18.5 |
|
12PSB220V-II
|
SAME 12PSB-II |
4
|
|
12PSB-III
|
1.test cylinders:12 2.RPM 0-4000 3.Ten speed preset 4.With 12v/24v DC power 5.digital display of oil count times 6.Digital display of temperature 7.with air supply 8.Measurement of oil return of distributing pumps 9.Measure oil flux of VE pumps 10.Measure the internal pressure of VE pump. |
5.5
7.5 11 15 18.5 |
|
12PSB220V-III
|
SAME 12PSB-III |
4
|
|
12PSB-IV
|
1.test cylinders:12 2.RPM 0-4000 3.Ten speed preset 4.With 12v/24v DC power 5.digital display of oil count times 6.Digital display of temperature 7.with air supply 8.Measure advance angle 9. Measure oil return of VE pumps 10. Measure oil flux of VE pumps 11.Measure the internal pressure of VE pump. |
5.5
7.5 11 15 18.5 |
|
12PSB220V-IV
|
SAME 12PSB-IV |
