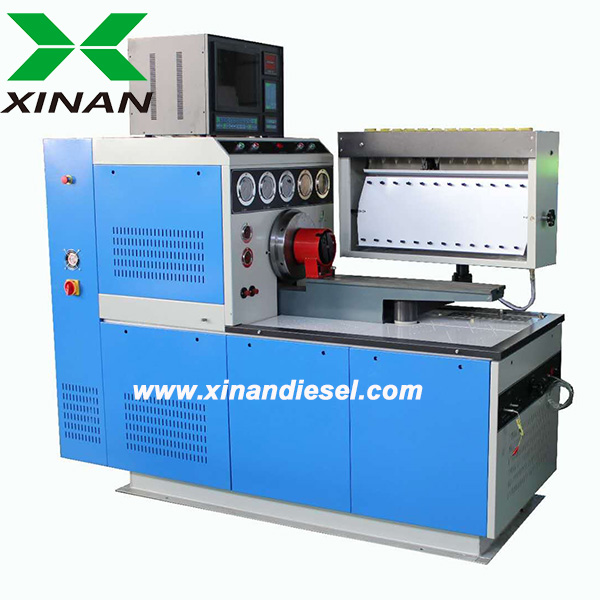

NTS619 Blue-white Diesel fuel injection pump test bench

2018/7/14 16:52:07 本站 2827

Main function

1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.
10. Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.

12. Checking the travel of stroke (on request) USD150.00

13. Advance angle checking.

l Characteristics

1. Changing frequency changing rotational speed

2. Low fall of rotational speed and high output torque

3. High measurement precision;

4. The functions of over voltage, overload and short circuit protection;

5. Ten classes Rotation speeds presetting;

6. Constant temperature controlled;

7. Ultra low noise;

8. Operating position: arbitrary side of the two work sides of the test stand;

9. Rotation speed, count, temperature, air pressure, advance angle are measured and

controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).

10. Built-in air resource;

11. All data can be made into reports and printed;

12. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)

13. The data of the pumps can be saved, modified and obtained pump database;

14. It is very easy to find the data of the pumps in pumps database;

l Technical Parameters

Specifications
No.	Items	Data
1	Main motor output power(kw)	15KW
2	Frequency Converter	WANLI
3	Stroke Counting (Rpm)	50-9999
4	Standard injectors	PB55ST42
5	Power of fuel pump motor (kw)	0.75
6	Scope of rotate speed (r/m)	0~4000
7	Number of cylinders	12
8	Height of principal axis center (mm)	125
9	Filter oil precision of test bench(μ)	4.5~5.5
10	Volume of big and small volumetric cylinder（ml）	150 45
11	Volume of fuel tank(L)	40
12	DC power supply	12/24V
13	Low pressure of fuel oil pressure(Mpa)	0~0.6
14	High pressure of fuel oil pressure(Mpa)	0~6
15	Pressure Gauge for VE Pump (Mpa)	0-1.6
16	Pressure Gauge for VE Pump (Mpa)	0-0.16
17	Control temperature of fuel (℃)	40±2
18	Flywheel inertia(kg*m)	0.8~0.9
19	Scope of rack bar stroke(mm)	0~25
20	Measuring range of flow meter(L/m)	10~100
21	DC electrical source(V)	12 24
22	Positive pressure of air supply(Mpa)	0~0.3
23	Negative pressure of air supply(Mpa)	-0.03~0
24	Dimensions of Packing ( LWH(m ))	2.31.141.73
25	Gross weight of Test bench( kg)	850Kgs

NT619 PUMP TEST BENCH PACKING LIST
Accessories and main machine parts are all packed in accessories box
NO.	Name	Specification or Symbol	Quantity	Unit	Remark
1	Fuel Injection Pump Test Bench	NTS619	1	Set
2	Feed Oil Pipes	M20×1.5×1000（mm）	2	PC
3	High Pressure Oil Pipe	M14×1.5/M14×1.5×600	12	PCs	With it injector itself
4	High Pressure Oil Pipe	M14×1.5/M12×1.5×800	12	PCs
5	45ml Graduate	45ml	12	PCs
6	150ml graduate	150ml	12	PCs
7	Standard Injector	PB55ST42	12	PCs
8	Oil pump connector	M14×1.5	2	PCs
9	Oil pump connector	M12×1.5	2	PCs
10	Oil pump connector	M16×1.5	2each	PCs
11	Scale Lever		1	PCs
12	Rotational Joint	φ12.5 φ14.5 φ16.5	2each	PCs
13	Versatile angle iron		1	Set
14	Coupler	ⅠⅡⅢ.IV，V	1each	PCs
15	Clamping Bracket		1	Set
16	T-type screw nail		3each	PC	One of them longer
17	Hexagon Wrench	S=10	1	PCs
18	Locating Block	ⅠⅡⅢP7, P7100 etc.	2each/14PCs	PCs
19	DC power supply wire	12/24V	1	PCs
20	Air Pipe assemble
